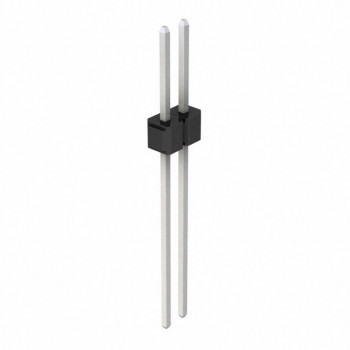

929710-06-01-RK
3M
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 2POS
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 929710-06-01-RK Datasheet
-
ECAD Model
- Share
In Stock: 180
Can ship immediately
Pricing:
- 1$0.32
- 10$0.303
- 25$0.26
- 50$0.221
- 100$0.2123
- 250$0.19068
- 500$0.182
Quote It
Technical Details
- Series:929
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:-
- Number of Positions:2
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.318" (8.08mm)
- Contact Length - Post:0.710" (18.03mm)
- Overall Contact Length:1.128" (28.65mm)
- Insulation Height:0.100" (2.54mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:200.0µin (5.08µm)
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
- Features:-
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):2.5A
- Voltage Rating:-
