In Stock: 103

Can ship immediately

Pricing:
  • 1$0.3285
  • 2,990$0.3285

Quote It

Technical Details

  • Series:Minitek127® 1.27mm
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:8
  • Number of Rows:2
  • Row Spacing - Mating:0.050" (1.27mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.120" (3.05mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:-
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Pick and Place
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


10127721-102LF

CONN HEADER VERT 10POS 3MM

10127721-102LF Datasheet
  • 1: $0.32850
  • 945: $0.32850

68015-208

CONN HEADER R/A 8POS 2.54MM

68015-208 Datasheet
  • 1: $0.32850
  • 4000: $0.32850

68016-608

CONN HEADER R/A 8POS 2.54MM

68016-608 Datasheet
  • 1: $0.32850
  • 4000: $0.32850

57202-F51-02LF

CONN HEADER SMD 4POS 2MM

57202-F51-02LF Datasheet
  • 1: $0.32864
  • 1500: $0.30384

826951-7

CONN HEADER R/A 7POS 2.54MM

826951-7 Datasheet
  • 1: $0.32869
  • 6000: $0.31912

2029195-3

CONN HEADER 3POS

  • 1: $0.32874
  • 15000: $0.32874

2029196-3

CONN HEADER 3POS

  • 1: $0.32874
  • 15000: $0.32874

800-80-005-40-001101

CONN HEADER SMD R/A 5POS 2.54MM

800-80-005-40-001101 Datasheet
  • 1: $0.32880
  • 1800: $0.30283

77313-401-12LF

CONN HEADER VERT 12POS 2.54MM

77313-401-12LF Datasheet
  • 1: $0.32880
  • 1500: $0.30400

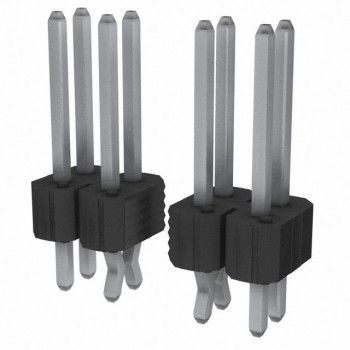

78548-416HLF
