892-70-014-10-001101

Preci-Dip
In Stock: 187

Can ship immediately

Pricing:
  • 1$0.3304
  • 1,500$0.2996

Quote It

Technical Details

  • Series:892
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:14
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.236" (6.00mm)



  • Contact Length - Post:0.122" (3.10mm)
  • Overall Contact Length:0.458" (11.64mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:150VDC

Related Products


861400242LO1332LF

CONN HEADER R/A 24POS 2.54MM

861400242LO1332LF Datasheet
  • 1: $0.33056
  • 1500: $0.33040

1-2132415-5

CONN HEADER VERT 15POS 2.5MM

1-2132415-5 Datasheet
  • 1: $0.33060
  • 4800: $0.33060

95278-402-08LF

CONN HEADER SMD 8POS 2.54MM

95278-402-08LF Datasheet
  • 1: $0.33083
  • 1000: $0.30575

77311-401-12LF

CONN HEADER VERT 12POS 2.54MM

77311-401-12LF Datasheet
  • 1: $0.33083
  • 1000: $0.30575

10144042-12011LF

0.8MM PITCH VT HEADER SM

  • 1: $0.33085

0026489061

CONN HEADER VERT 6POS 3.96MM

0026489061 Datasheet
  • 1: $0.33090
  • 3200: $0.33090

67998-210HLF

CONN HEADER

  • 1: $0.33104

GBC03SGAN

CONN HEADER R/A 3POS 2.54MM

GBC03SGAN Datasheet
  • 1: $0.33120
  • 100: $0.33120

GEC07SAAN

CONN HEADER VERT 7POS 2.54MM

GEC07SAAN Datasheet
  • 1: $0.33120
  • 100: $0.33120

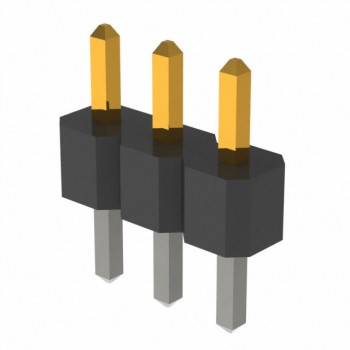

PBC03SZAN
