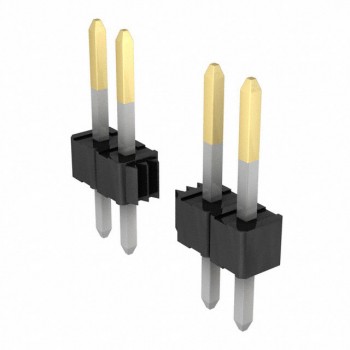

2304-6221-TG
3M
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 4POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 2304-6221-TG Datasheet
-
ECAD Model
- Share
In Stock: 130
Can ship immediately
Pricing:
- 1$0.36
- 10$0.34295
- 25$0.29709
- 50$0.25598
- 100$0.24679
- 250$0.22392
- 500$0.21479
Quote It
Technical Details
- Series:2300
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:4
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.318" (8.08mm)
- Contact Length - Post:0.120" (3.05mm)
- Overall Contact Length:0.538" (13.67mm)
- Insulation Height:0.100" (2.54mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Tin-Lead
- Contact Material:Copper Alloy
- Insulation Material:Thermoplastic, Glass Filled
- Features:-
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3A
- Voltage Rating:-
