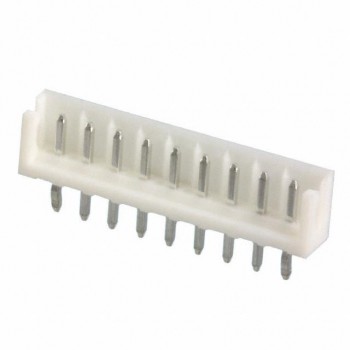

440052-9
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 9POS 2.5MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 440052-9 Datasheet
-
ECAD Model
- Share
In Stock: 180
Can ship immediately
Pricing:
- 1$0.39792
- 10$0.34887
- 100$0.30098
- 500$0.24624
- 1,000$0.21888
- 5,000$0.19152
- 10,000$0.18195
Quote It
Technical Details
- Series:High Performance Interconnect (HPI)
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.098" (2.50mm)
- Number of Positions:9
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 3 Wall
- Mounting Type:Through Hole
- Termination:Press-Fit, Solder
- Fastening Type:Friction Lock
- Contact Length - Mating:0.136" (3.45mm)
- Contact Length - Post:0.134" (3.40mm)
- Overall Contact Length:0.335" (8.51mm)
- Insulation Height:0.236" (6.00mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:80.0µin (2.03µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Thermoplastic
- Features:-
- Operating Temperature:-25°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Natural
- Current Rating (Amps):3A
- Voltage Rating:250V
