ES9P002VF1R1600
JAE Electronics- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD R/A 2POS 3MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet ES9P002VF1R1600 Datasheet
-
ECAD Model
- Share
In Stock: 185
Can ship immediately
Pricing:
- 1$0.40932
- 1,600$0.40932
Quote It
Technical Details
- Series:ES9
- Package:Tape & Reel (TR)
- Part Status:Active
- Connector Type:Plug
- Contact Type:Male Blade
- Pitch - Mating:0.118" (3.00mm)
- Number of Positions:2
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 3 Wall
- Mounting Type:Surface Mount, Right Angle
- Termination:Solder
- Fastening Type:Spring Lock
- Contact Length - Mating:-
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.118" (3.00mm)
- Contact Shape:Rectangular
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:Solder Retention
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Ivory
- Current Rating (Amps):3A
- Voltage Rating:250V
Related Products
CONN HEADER R/A 8POS 4.2MM
- 1: $0.40979
- 540: $0.40979

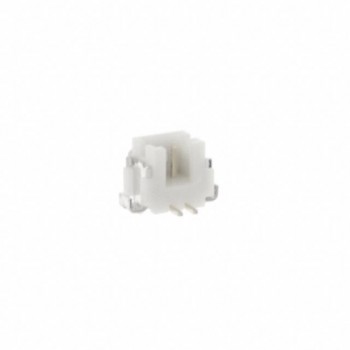

CONN HEADER SMD 2POS 1.25MM
