M20-9950845
Harwin
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 16POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet M20-9950845 Datasheet
-
ECAD Model
- Share
In Stock: 136
Can ship immediately
Pricing:
- 1$0.4192
- 1,200$0.4092
Quote It
Technical Details
- Series:M20
- Package:Bulk
- Part Status:Active
- Connector Type:Header, Cuttable
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:16
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.240" (6.10mm)
- Contact Length - Post:0.118" (3.00mm)
- Overall Contact Length:-
- Insulation Height:0.200" (5.08mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:-
- Contact Material:Brass
- Insulation Material:Polyamide (PA6T), Nylon 6T
- Features:-
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3A per Contact
- Voltage Rating:-
Related Products

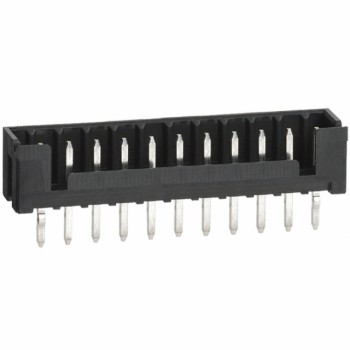

CONN HEADER SMD R/A 11POS 1.5MM
