5055680971

Woodhead - Molex
In Stock: 144

Can ship immediately

Pricing:
  • 1$0.42055
  • 14,400$0.42055

Quote It

Technical Details

  • Series:Micro-Lock PLUS 505568
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.049" (1.25mm)
  • Number of Positions:9
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.165" (4.20mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:39.4µin (1.00µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:Solder Retention
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:50VAC/DC

Related Products


10136646-05211LF

MINITEK PWR4.2 RA HEADER

  • 1: $0.42064

10146242-051NLF

MINITEKPWR 2.5 VT TH HDR

  • 1: $0.42068

G881B11102KEU

CONN HEADER VERT 11POS 3MM

G881B11102KEU Datasheet
  • 1: $0.42070
  • 6600: $0.39747

10127819-0821GLF

CONN HEADER R/A 8POS 4.2MM

  • 1: $0.42079
  • 630: $0.42079

M22-2011405

CONN HEADER VERT 14POS 2MM

M22-2011405 Datasheet
  • 1: $0.42080
  • 1000: $0.40000

68458-212HLF

CONN HEADER R/A 12POS 2.54MM

68458-212HLF Datasheet
  • 1: $0.42080
  • 1200: $0.42080

DF1-9P-2.5DSA(05)

CONN HEADER VERT 9POS 2.5MM

DF1-9P-2.5DSA(05) Datasheet
  • 1: $0.42090
  • 100: $0.41389

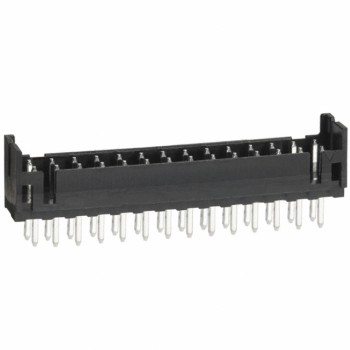

DF11-28DP-2DSA(08)

CONN HEADER VERT 28POS 2MM

DF11-28DP-2DSA(08) Datasheet
  • 1: $0.42090
  • 100: $0.41389

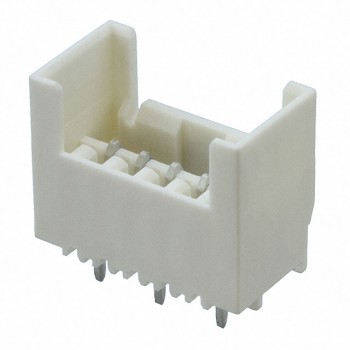

1-1971819-5

CONN HEADER VERT 5POS 2.5MM

1-1971819-5 Datasheet
  • 1: $0.42091
  • 3600: $0.38500

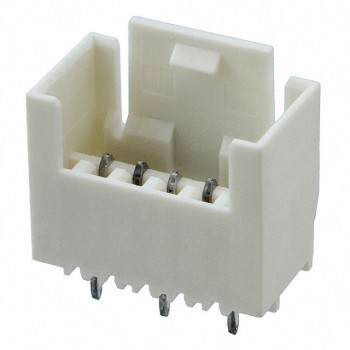

1-1971837-5
