892-70-018-10-001101

Preci-Dip
In Stock: 173

Can ship immediately

Pricing:
  • 1$0.4248
  • 1,200$0.39713

Quote It

Technical Details

  • Series:892
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:18
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.236" (6.00mm)



  • Contact Length - Post:0.122" (3.10mm)
  • Overall Contact Length:0.458" (11.64mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:150VDC

Related Products


147336-2

CONN HEADER VERT 9POS 2.54MM

147336-2 Datasheet
  • 1: $0.42487
  • 25000: $0.39285

0022283061

CONN HEADER VERT 6POS 2.54MM

0022283061 Datasheet
  • 1: $0.42490
  • 6000: $0.42490

0022283067

CONN HEADER VERT 6POS 2.54MM

0022283067 Datasheet
  • 1: $0.42490
  • 6000: $0.42490

87139-158

CONN HEADER VERT 4POS 2MM

87139-158 Datasheet
  • 1: $0.42494

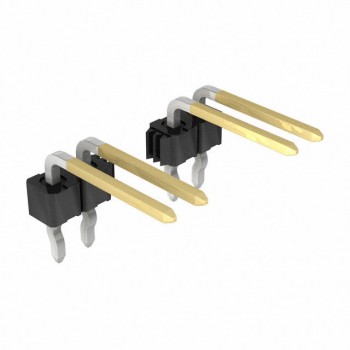

0022287093
