In Stock: 181

Can ship immediately

Pricing:
  • 1$0.44951
  • 4,800$0.44951

Quote It

Technical Details

  • Series:Economy Power 2.5
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.098" (2.50mm)
  • Number of Positions:12
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:-



  • Contact Length - Post:0.134" (3.40mm)
  • Overall Contact Length:-
  • Insulation Height:0.346" (8.80mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:80.0µin (2.03µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polyamide (PA), Nylon
  • Features:Glow Wire Compliant
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):4.2A
  • Voltage Rating:250VAC

Related Products


1721731004

CONN HEADER R/A 4POS 3.96MM

1721731004 Datasheet
  • 1: $0.44954
  • 6400: $0.44954

M22-2580505

CONN HEADER VERT 10POS 2MM

M22-2580505 Datasheet
  • 1: $0.44960
  • 1000: $0.42560

M20-9720945

CONN HEADER VERT 18POS 2.54MM

M20-9720945 Datasheet
  • 1: $0.44960
  • 1000: $0.42560

350-80-108-01-899101

CONN HEADER SMD 8POS 2.54MM

350-80-108-01-899101 Datasheet
  • 1: $0.44960
  • 1250: $0.41402

0026603056

CONN HEADER R/A 5POS 3.96MM

0026603056 Datasheet
  • 1: $0.44962
  • 500: $0.42820

77319-103-06LF

CONN HEADER R/A 6POS 2.54MM

77319-103-06LF Datasheet
  • 1: $0.44976
  • 1000: $0.41568

77315-128-04LF

BERGSTIK HDR

  • 1: $0.44976

93690-410-08LF

BERGSTIK HDR STR-DERO-G 13-SYS-0

  • 1: $0.44976

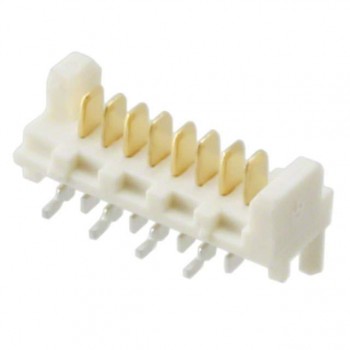

0908143008
