In Stock: 188

Can ship immediately

Pricing:
  • 1$0.48276
  • 1,890$0.48276

Quote It

Technical Details

  • Series:High Performance Interconnect (HPI)
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:-
  • Contact Length - Mating:-



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:-
  • Insulation Height:0.197" (5.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-25°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):3A
  • Voltage Rating:100VDC

Related Products


77315-418-10LF

CONN HEADER R/A 10POS 2.54MM

77315-418-10LF Datasheet
  • 1: $0.48280
  • 500: $0.44638

77311-102S05LF

CONN HEADER VERT 5POS 2.54MM

77311-102S05LF Datasheet
  • 1: $0.48280
  • 500: $0.44638

54202-T0807AB06LF

CONN HEADER SMD 14POS 2.54MM

  • 1: $0.48280
  • 740: $0.48280

643326-4

CONN HEADER VERT 13POS 3.96MM

643326-4 Datasheet
  • 1: $0.48282
  • 500: $0.48282

008263041100000+

WIRE TO BOARD

  • 1: $0.48282

54102-S3010LF

CONN HEADER VERT 20POS 2.54MM

54102-S3010LF Datasheet
  • 1: $0.48285
  • 2700: $0.48285

68020-812-080032LF

CONN HEADER R/A 12POS 2.54MM

68020-812-080032LF Datasheet
  • 1: $0.48285
  • 4000: $0.48285

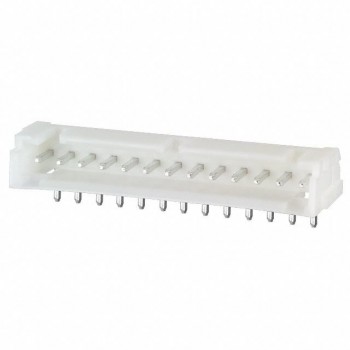

DF1BZ-13P-2.5DS

CONN HEADER R/A 13POS 2.5MM

DF1BZ-13P-2.5DS Datasheet
  • 1: $0.48300
  • 100: $0.46000

DF1-9P-2.5DS(05)

CONN HEADER R/A 9POS 2.5MM

DF1-9P-2.5DS(05) Datasheet
  • 1: $0.48300
  • 100: $0.46000

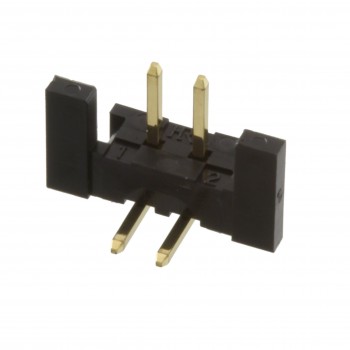

HNC2-2.5P-2DSL(05)
