SMH100-LPPE-S07-SD-BK
Sullins Connector Solutions- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD 7POS 1MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet SMH100-LPPE-S07-SD-BK Datasheet
-
ECAD Model
- Share
In Stock: 168
Can ship immediately
Pricing:
- 1$0.51408
- 1,000$0.51408
Quote It
Technical Details
- Series:SMH
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.039" (1.00mm)
- Number of Positions:7
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.065" (1.65mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.039" (1.00mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:Flash
- Contact Finish - Post:Gold
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:-
- Operating Temperature:-40°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):1A
- Voltage Rating:-
Related Products

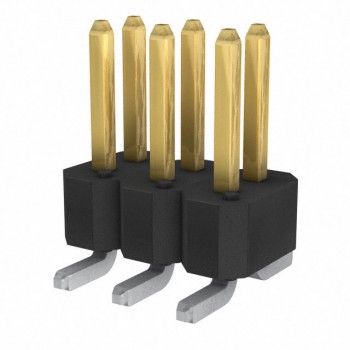

BERGSTIK HEADER DR-STRAIGHT
