IL-WX-6P-HF-B-E1000E
JAE Electronics- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD R/A 6POS 0.8MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet IL-WX-6P-HF-B-E1000E Datasheet
-
ECAD Model
- Share
In Stock: 109
Can ship immediately
Pricing:
- 1$0.53811
- 1,000$0.53811
Quote It
Technical Details
- Series:IL-WX
- Package:Tape & Reel (TR)
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.031" (0.80mm)
- Number of Positions:6
- Number of Rows:2
- Row Spacing - Mating:0.059" (1.50mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.071" (1.80mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.185" (4.70mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Polyphenylene Sulfide (PPS), Glass Filled
- Features:Solder Retention
- Operating Temperature:-40°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Black
- Current Rating (Amps):0.5A per Contact
- Voltage Rating:-
Related Products

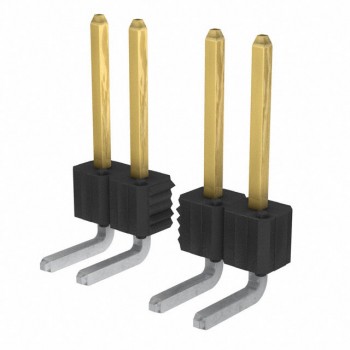

BERGSTIK HDR
