LY20-8P-DT1-P1E-BR
JAE Electronics- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 8POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet LY20-8P-DT1-P1E-BR Datasheet
-
ECAD Model
- Share
In Stock: 122
Can ship immediately
Pricing:
- 1$0.612
- 736$0.612
Quote It
Technical Details
- Series:LY20
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:8
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Detent Lock
- Contact Length - Mating:0.106" (2.70mm)
- Contact Length - Post:0.118" (3.00mm)
- Overall Contact Length:0.291" (7.40mm)
- Insulation Height:0.177" (4.50mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:3.90µin (0.099µm)
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
- Features:-
- Operating Temperature:-40°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Brown
- Current Rating (Amps):3A per Contact
- Voltage Rating:250V
Related Products
2MM VERT HEADER CONN 0.05AULF 8C
- 1: $0.61222

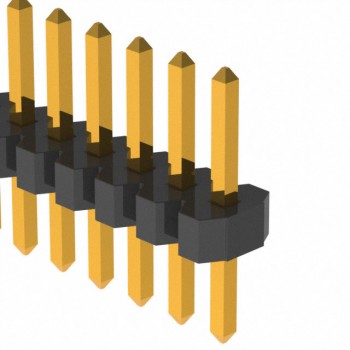

CONN HEADER VERT 17POS 1.27MM
