MDF7-7P-2.54DS(95)
Hirose- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 7POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 155
Can ship immediately
Pricing:
- 1$0.616
Quote It
Technical Details
- Series:MDF7
- Package:Bag
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:7
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Unshrouded
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.293" (7.45mm)
- Contact Length - Post:0.130" (3.30mm)
- Overall Contact Length:-
- Insulation Height:0.157" (4.00mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polybutylene Terephthalate (PBT)
- Features:-
- Operating Temperature:-35°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3A
- Voltage Rating:250VAC
Related Products

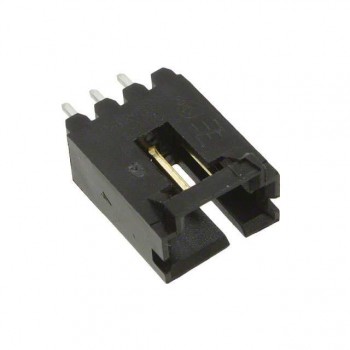

CONN HEADER VERT 3POS 2.54MM
