1-2029155-2
TE Connectivity AMP Connectors- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 12POS 4.2MM
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 125
Can ship immediately
Pricing:
- 1$0.62503
- 10,500$0.62503
Quote It
Technical Details
- Series:VAL-U-LOK
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.165" (4.20mm)
- Number of Positions:12
- Number of Rows:2
- Row Spacing - Mating:0.165" (4.20mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:0.142" (3.60mm)
- Overall Contact Length:-
- Insulation Height:0.386" (9.80mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polyamide (PA), Nylon
- Features:-
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-2
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:600VAC
Related Products
CONN HEADER R/A 12POS 4.2MM
- 1: $0.62503
- 10500: $0.62503
CONN HEADER R/A 12POS 4.2MM
- 1: $0.62503
- 10500: $0.62503

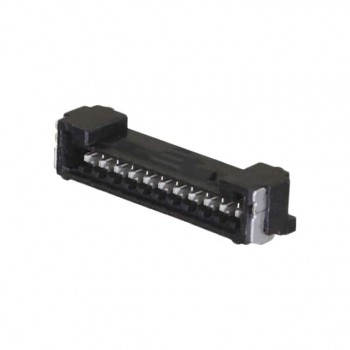

MINITEK PWR3.0 R/A SMT
