800-10-002-61-001000

Mill-Max
In Stock: 219

Can ship immediately

Pricing:
  • 1$0.63
  • 10$0.58981
  • 25$0.53094
  • 50$0.47185
  • 100$0.45219
  • 250$0.41289
  • 500$0.39323

Quote It

Technical Details

  • Series:800
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:2
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Press-Fit, Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.191" (4.85mm)



  • Contact Length - Post:0.104" (2.64mm)
  • Overall Contact Length:0.405" (10.29mm)
  • Insulation Height:0.110" (2.79mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Brass Alloy
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


67997-214HLF

CONN HEADER VERT 14POS 2.54MM

67997-214HLF Datasheet
  • 1: $0.63000
  • 10: $0.59139
  • 100: $0.46254

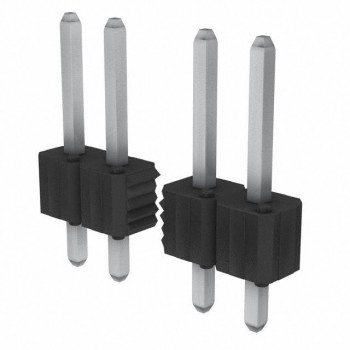

68000-414HLF

CONN HEADER VERT 14POS 2.54MM

68000-414HLF Datasheet
  • 1: $0.63000
  • 10: $0.58729
  • 100: $0.44997

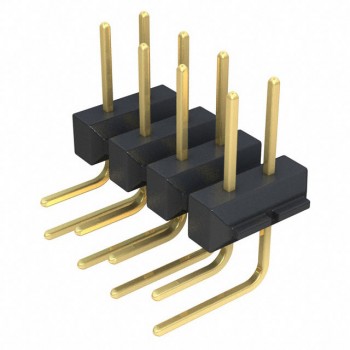

0010894086

CONN HEADER R/A 8POS 2.54MM

  • 1: $0.63000

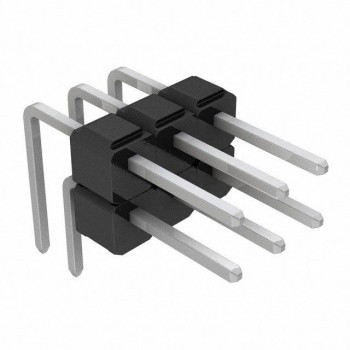

929838-04-03

CONN HEADER R/A 6POS 2.54MM

929838-04-03 Datasheet
  • 1: $0.63000
  • 10: $0.59000
  • 25: $0.53120

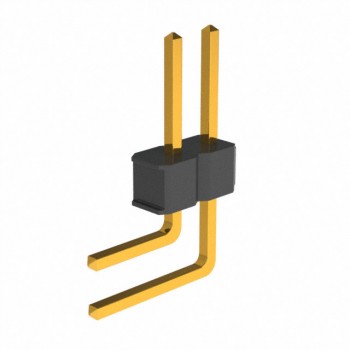

929667-04-01-I

CONN HEADER R/A 2POS

929667-04-01-I Datasheet
  • 1: $0.63000
  • 10: $0.58900
  • 25: $0.53000

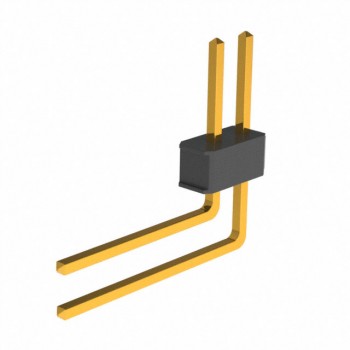

929667-02-01-I

CONN HEADER R/A 2POS

929667-02-01-I Datasheet
  • 1: $0.63000
  • 10: $0.58900
  • 25: $0.53000

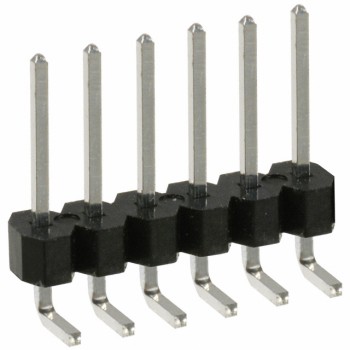

PEC06SGAN

CONN HEADER R/A 6POS 2.54MM

PEC06SGAN Datasheet
  • 1: $0.63000
  • 10: $0.58800
  • 25: $0.52920

9-146278-0-06

CONN HEADER VERT 6POS 2.54MM

9-146278-0-06 Datasheet
  • 1: $0.63000
  • 10: $0.59307
  • 25: $0.53398

649010227222

CONN HEADER R/A 10POS 4.2MM

  • 1: $0.63000
  • 10: $0.60480
  • 50: $0.52920

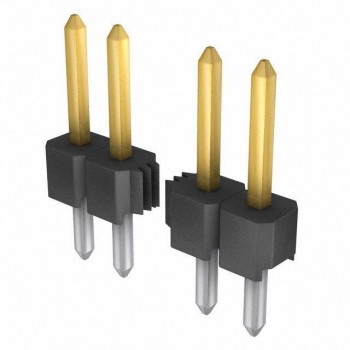

961107-6804-AR
