In Stock: 117

Can ship immediately

Pricing:
  • 1$0.631
  • 400$0.5836

Quote It

Technical Details

  • Series:BERGSTIK®
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:22
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.135" (3.43mm)
  • Overall Contact Length:0.465" (11.81mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold or Gold, GXT™
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


0026013192

CONN HEADER VERT 10POS 2.54MM

0026013192 Datasheet
  • 1: $0.63104
  • 4000: $0.63104

0026655030

CONN HEADER R/A 3POS 3.96MM

0026655030 Datasheet
  • 1: $0.63112
  • 4800: $0.63112

10076801-101-14LF

CONN HEADER VERT 14POS 2.54MM

10076801-101-14LF Datasheet
  • 1: $0.63120
  • 1500: $0.58365

54202-G08-11A

CONN HEADER SMD 22POS 2.54MM

54202-G08-11A Datasheet
  • 1: $0.63120
  • 1850: $0.63120

S14B-PASK-2(LF)(SN)

CONN HEADER R/A 14POS 2MM

S14B-PASK-2(LF)(SN) Datasheet
  • 1: $0.63125
  • 3600: $0.40148

830-80-010-10-001101

CONN HEADER VERT 10POS 2MM

830-80-010-10-001101 Datasheet
  • 1: $0.63136
  • 700: $0.63136

AWHW 16A-0202-T

CONN HEADER R/A 16POS 2.54MM

AWHW 16A-0202-T Datasheet
  • 1: $0.63140
  • 200: $0.63140

892-80-014-20-002101

CONN HEADER R/A 14POS 2.54MM

892-80-014-20-002101 Datasheet
  • 1: $0.63158
  • 760: $0.58151

77313-401-32LF

CONN HEADER VERT 32POS 2.54MM

77313-401-32LF Datasheet
  • 1: $0.63168
  • 1200: $0.58400

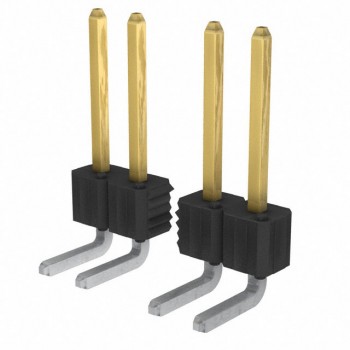

78554-220HLF
