890-18-009-10-001101

Preci-Dip
In Stock: 128

Can ship immediately

Pricing:
  • 1$0.64505
  • 770$0.57868

Quote It

Technical Details

  • Series:890
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:9
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.236" (6.00mm)



  • Contact Length - Post:0.122" (3.10mm)
  • Overall Contact Length:0.458" (11.64mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:150VDC

Related Products


SBH11-NBPC-D03-SM-BK

CONN HEADER SMD 6POS 2.54MM

SBH11-NBPC-D03-SM-BK Datasheet
  • 1: $0.64512
  • 1000: $0.64512

SBH11-NBPC-D04-SM-BK

CONN HEADER SMD 8POS 2.54MM

SBH11-NBPC-D04-SM-BK Datasheet
  • 1: $0.64512
  • 1000: $0.64512

0702804404

CONN HEADER VERT 12POS 2.54MM

0702804404 Datasheet
  • 1: $0.64515
  • 2240: $0.64515

104344-6

CONN HEADER VERT 8POS 2.54MM

104344-6 Datasheet
  • 1: $0.64526
  • 8000: $0.60249

77311-418-20LF

CONN HEADER VERT 20POS 2.54MM

77311-418-20LF Datasheet
  • 1: $0.64528
  • 1000: $0.59664

890-80-014-10-004101

CONN HEADER VERT 14POS 2.54MM

890-80-014-10-004101 Datasheet
  • 1: $0.64540
  • 800: $0.59440

852-10-006-20-001101

CONN HEADER R/A 6POS 1.27MM

852-10-006-20-001101 Datasheet
  • 1: $0.64545
  • 530: $0.64545

0022283084

CONN HEADER VERT 8POS 2.54MM

0022283084 Datasheet
  • 1: $0.64554
  • 4500: $0.64554

0877590851

CONN HEADER SMD 8POS 2MM

0877590851 Datasheet
  • 1: $0.64568
  • 2970: $0.64568

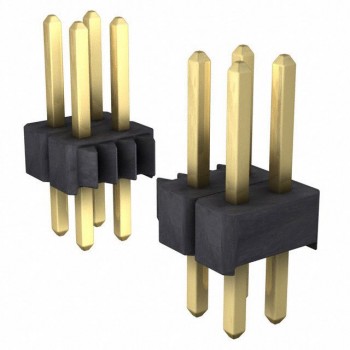

882-70-018-10-001101
