IL-10P-S3FP2

JAE Electronics
In Stock: 190

Can ship immediately

Pricing:
  • 1$0.648
  • 695$0.648

Quote It

Technical Details

  • Series:IL
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.098" (2.50mm)
  • Number of Positions:10
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.236" (6.00mm)



  • Contact Length - Post:0.138" (3.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.256" (6.50mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA66), Nylon 6/6
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Brown
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


FI-S2P-HFE-E1500

CONN HEADER SMD R/A 2POS 1.25MM

FI-S2P-HFE-E1500 Datasheet
  • 1: $0.64800
  • 1500: $0.64800

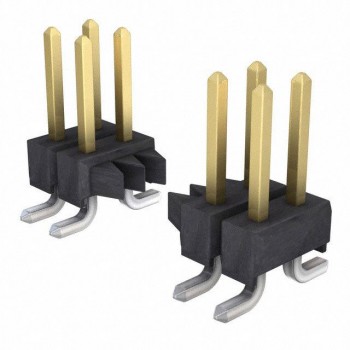

M20-8750542R

CONN HEADER SMD 10POS 2.54MM

M20-8750542R Datasheet
  • 1: $0.64800
  • 1500: $0.61200

DF13-11P-1.25V(75)

CONN HEADER SMD 11POS 1.25MM

  • 1: $0.64808
  • 10: $0.60429
  • 100: $0.46329

DF13-9P-1.25DSA(75)

CONN HEADER VERT 9POS 1.25MM

DF13-9P-1.25DSA(75) Datasheet
  • 1: $0.64811
  • 37: $0.54396
  • 111: $0.46332

10131319-14211G0LF

CONN HEADER VERT 14POS 4.2MM

  • 1: $0.64819
  • 585: $0.64819

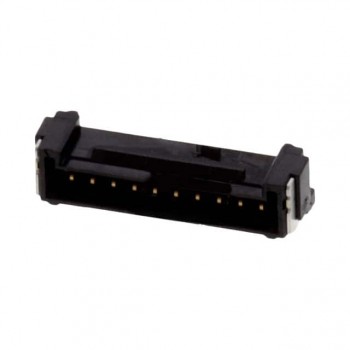

5055671081
