In Stock: 116

Can ship immediately

Pricing:
  • 1$0.66482
  • 960$0.61478

Quote It

Technical Details

  • Series:BERGSTIK®
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:8
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.319" (8.10mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic
  • Features:Pick and Place
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


95278-402A08LF

CONN HEADER SMD 8POS 2.54MM

95278-402A08LF Datasheet
  • 1: $0.66482
  • 900: $0.61479

95278-402B08LF

BERGSTIK HDR

  • 1: $0.66482

SBH51-LPPE-D06-ST-BK

CONN HEADER VERT 12POS 1MM

SBH51-LPPE-D06-ST-BK Datasheet
  • 1: $0.66485
  • 1000: $0.66485

800-80-004-30-480191

CONN HEADER SMD 4POS 2.54MM

  • 1: $0.66496
  • 1300: $0.61246

1511181506

MGRID SHRD HDR SMT /OPEG GFLF 6C

  • 1: $0.66497

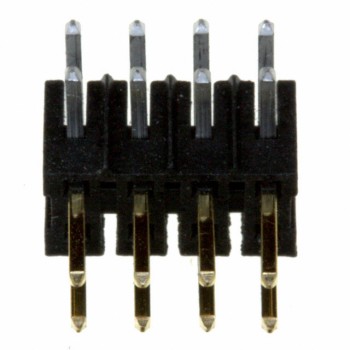

58102-G61-04LF

CONN HEADER R/A 8POS 2MM

58102-G61-04LF Datasheet
  • 1: $0.66527
  • 6000: $0.66527

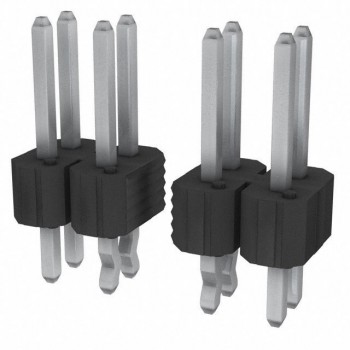

69192-436HLF

CONN HEADER VERT 36POS 2.54MM

69192-436HLF Datasheet
  • 1: $0.66528
  • 1200: $0.66528

SBH21-NBPN-D03-RA-BK

CONN HEADER R/A 6POS 2MM

SBH21-NBPN-D03-RA-BK Datasheet
  • 1: $0.66528
  • 1000: $0.66528

SBH21-NBPN-D04-RA-BK

CONN HEADER R/A 8POS 2MM

SBH21-NBPN-D04-RA-BK Datasheet
  • 1: $0.66528
  • 1000: $0.66528

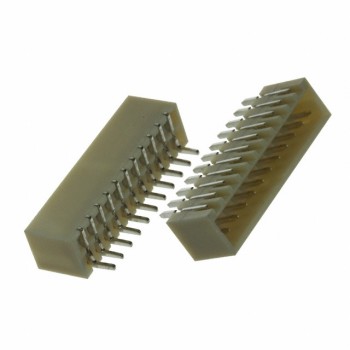

6-1775444-1
