In Stock: 185

Can ship immediately

Pricing:
  • 1$0.67267
  • 600$0.62208

Quote It

Technical Details

  • Series:BERGSTIK®
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:14
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.266" (6.75mm)



  • Contact Length - Post:0.112" (2.84mm)
  • Overall Contact Length:-
  • Insulation Height:0.094" (2.40mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold or Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


G874D161202CEU

CONN HEADER VERT 16POS 4.2MM

G874D161202CEU Datasheet
  • 1: $0.67270
  • 6600: $0.65008

147292-3

CONN HEADER SMD 4POS 2.54MM

147292-3 Datasheet
  • 1: $0.67278
  • 2500: $0.62208

146309-2

CONN HEADER R/A 4POS 2.54MM

146309-2 Datasheet
  • 1: $0.67279
  • 500: $0.67279

350-80-109-00-019101

CONN HEADER VERT 9POS 2.54MM

350-80-109-00-019101 Datasheet
  • 1: $0.67296
  • 660: $0.67296

68779-706HLF

CONN HEADER VERT 6POS 2.54MM

  • 1: $0.67309
  • 2400: $0.67309

PBC06SBBN-M71

CONN HEADER R/A 6POS 2.54MM

PBC06SBBN-M71 Datasheet
  • 1: $0.67320
  • 100: $ 0.67320

292232-9

CONN HEADER SMD 9POS 1.5MM

292232-9 Datasheet
  • 1: $0.67321
  • 19500: $0.67321

644874-9

CONN HEADER VERT 9POS 2.54MM

644874-9 Datasheet
  • 1: $0.67322
  • 2000: $0.58287

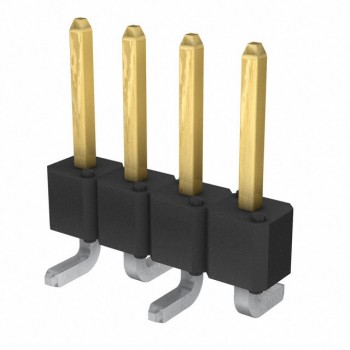

95293-101B04LF
