In Stock: 148

Can ship immediately

Pricing:
  • 1$0.68155
  • 4,800$0.68155

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Tab
  • Pitch - Mating:0.197" (5.00mm)
  • Number of Positions:5
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-



  • Contact Length - Post:0.138" (3.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.504" (12.80mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:150.0µin (3.81µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA66), Nylon 6/6
  • Features:Board Guide, Glow Wire Compliant
  • Operating Temperature:-40°C ~ 120°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:-
  • Current Rating (Amps):-
  • Voltage Rating:250VAC

Related Products


0022032158

CONN HEADER VERT 15POS 2.54MM

0022032158 Datasheet
  • 1: $0.68160
  • 2000: $0.68160

0022112081

CONN HEADER VERT 8POS 2.54MM

0022112081 Datasheet
  • 1: $0.68165
  • 4000: $0.68165

451-80-208-00-003101

CONN HEADER VERT 8POS 2.54MM

451-80-208-00-003101 Datasheet
  • 1: $0.68166
  • 730: $0.62775

0535210740

CONN HEADER VERT 7POS 7.92MM

0535210740 Datasheet
  • 1: $0.68175
  • 2000: $0.68175

NRTJ052TKEN-RC

CONN HEADER MALE 5POS

  • 1: $0.68175

351-80-109-00-003101

CONN HEADER VERT 9POS 2.54MM

351-80-109-00-003101 Datasheet
  • 1: $0.68176
  • 1000: $0.62782

0428910123

CONN HEADER VERT 5POS 3.96MM

0428910123 Datasheet
  • 1: $0.68179
  • 3600: $0.68179

350-10-107-01-609101

CONN HEADER VERT 4POS 5.08MM

350-10-107-01-609101 Datasheet
  • 1: $0.68180
  • 750: $0.59547

54202-G0813LF

CONN HEADER SMD 26POS 2.54MM

  • 1: $0.68193
  • 2400: $0.68193

DF1BD-5P-2.5DSA(05)

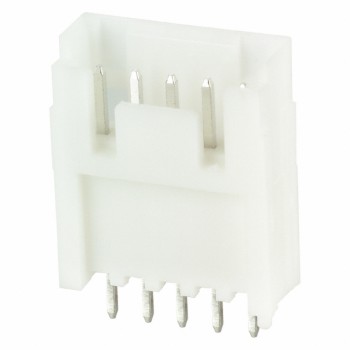

CONN HEADER VERT 5POS 2.5MM
