IL-AG5-7P-S3T2
JAE Electronics- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 7POS 2.5MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet IL-AG5-7P-S3T2 Datasheet
-
ECAD Model
- Share
In Stock: 113
Can ship immediately
Pricing:
- 1$0.688
- 1,344$0.688
Quote It
Technical Details
- Series:IL-AG5
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.098" (2.50mm)
- Number of Positions:7
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.331" (8.40mm)
- Contact Length - Post:0.138" (3.50mm)
- Overall Contact Length:0.594" (15.09mm)
- Insulation Height:0.717" (18.20mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polybutylene Terephthalate (PBT)
- Features:-
- Operating Temperature:-40°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Green
- Current Rating (Amps):3A per Contact
- Voltage Rating:-
Related Products

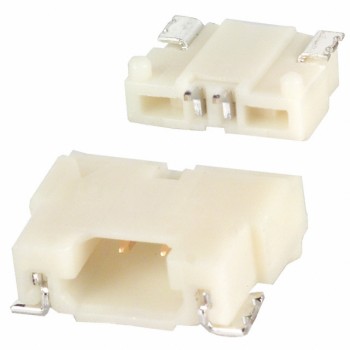

CONN HEADER SMD 20POS 1.25MM
- 1: $0.68800

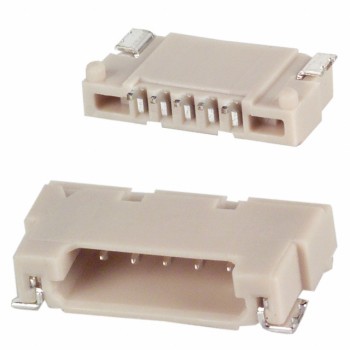

CONN HEADER SMD 10POS 1MM
- 1: $0.68800

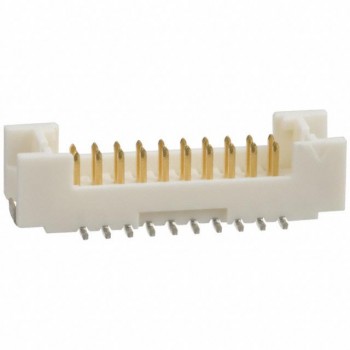

CONN HEADER SMD 10POS 1MM
- 1: $0.68800

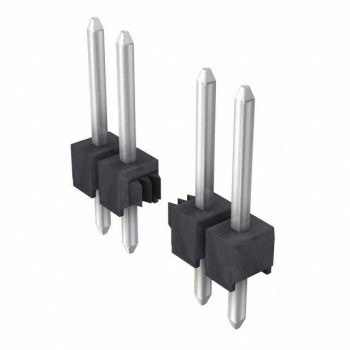

CONN HEADER VERT 3POS 5MM
