450-V3-206-00-006101
Preci-Dip
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 6POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 450-V3-206-00-006101 Datasheet
-
ECAD Model
- Share
In Stock: 176
Can ship immediately
Pricing:
- 1$0.68848
- 1,250$0.60147
Quote It
Technical Details
- Series:450
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:6
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.141" (3.60mm)
- Contact Length - Post:0.114" (2.90mm)
- Overall Contact Length:0.394" (10.00mm)
- Insulation Height:0.110" (2.79mm)
- Contact Shape:Circular
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:29.5µin (0.75µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
- Features:-
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3A
- Voltage Rating:150VDC
Related Products

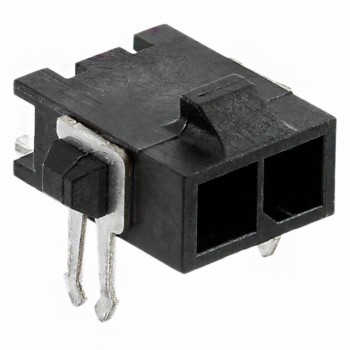

MINITEK PWR3.0 RA HEADER
