0022284093

Woodhead - Molex
In Stock: 102

Can ship immediately

Pricing:
  • 1$0.7
  • 10$0.655
  • 25$0.5896
  • 50$0.5242
  • 100$0.5024
  • 250$0.45872
  • 500$0.43686

Quote It

Technical Details

  • Series:KK254, 42375
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:9
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:0.125" (3.18mm)
  • Overall Contact Length:0.455" (11.56mm)
  • Insulation Height:0.090" (2.29mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:-
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


PBC04SAGN

CONN HEADER VERT 4POS 2.54MM

PBC04SAGN Datasheet
  • 1: $0.70000
  • 10: $0.66000
  • 25: $0.59400

PBC02DAFN

CONN HEADER VERT 4POS 2.54MM

PBC02DAFN Datasheet
  • 1: $0.70000
  • 10: $0.65800
  • 25: $0.59200

PEC02DBEN

CONN HEADER R/A 4POS 2.54MM

PEC02DBEN Datasheet
  • 1: $0.70000
  • 10: $0.65400
  • 25: $0.58880

26630501RP2

CONN HEADER VERT 5POS 2MM

26630501RP2 Datasheet
  • 1: $0.70000
  • 10: $0.65625
  • 25: $0.59062

PREC037SAAN-RC

CONN HEADER VERT 37POS 2.54MM

PREC037SAAN-RC Datasheet
  • 1: $0.70000
  • 10: $0.65900
  • 25: $0.59360

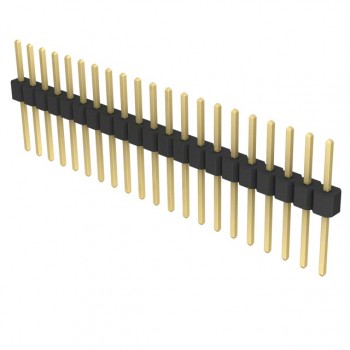

PRPC021SACN-RC

CONN HEADER VERT 21POS 2.54MM

PRPC021SACN-RC Datasheet
  • 1: $0.70000
  • 10: $0.66000
  • 25: $0.59360

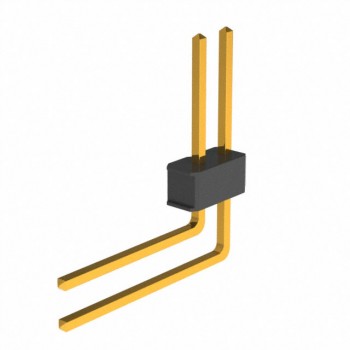

929745-02-01-I

CONN HEADER R/A 2POS

929745-02-01-I Datasheet
  • 1: $0.70000
  • 10: $0.65200
  • 25: $0.58680

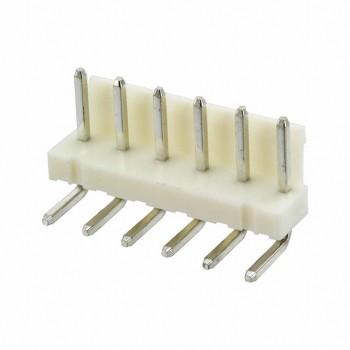

1744048-6

CONN HEADER R/A 6POS 5.08MM

1744048-6 Datasheet
  • 1: $0.70000
  • 10: $0.66300
  • 100: $0.51830

77311-401-22LF

CONN HEADER VERT 22POS 2.54MM

77311-401-22LF Datasheet
  • 1: $0.70002
  • 500: $0.64710

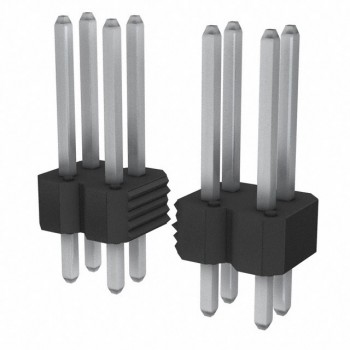

77313-422-20LF
