In Stock: 131

Can ship immediately

Pricing:
  • 1$0.7008
  • 1,000$0.64817

Quote It

Technical Details

  • Series:BERGSTIK®
  • Package:Bag
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:22
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.135" (3.43mm)
  • Overall Contact Length:0.465" (11.81mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:78.7µin (2.00µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


77313-418-22LF

CONN HEADER VERT 22POS 2.54MM

77313-418-22LF Datasheet
  • 1: $0.70080
  • 1000: $0.64817

77313-427-22LF

CONN HEADER VERT 22POS 2.54MM

77313-427-22LF Datasheet
  • 1: $0.70080
  • 1000: $0.64817

68692-428HLF

CONN HEADER VERT 28POS 2.54MM

68692-428HLF Datasheet
  • 1: $0.70080
  • 1200: $0.70080

1586044-8

CONN HEADER R/A 8POS 4.2MM

1586044-8 Datasheet
  • 1: $0.70086
  • 1400: $0.70086

10127720-142RLF

CONN MINIRWK 3.0MM HEADER DUAL R

  • 1: $0.70098

1-2029173-4

CONN HEADER VERT 14POS 4.2MM

1-2029173-4 Datasheet
  • 1: $0.70101
  • 1650: $0.65721

1-2029171-4

CONN HEADER VERT 14POS 4.2MM

1-2029171-4 Datasheet
  • 1: $0.70101
  • 1950: $0.65721

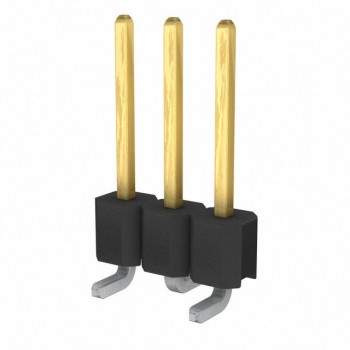

0878980364
