0878330433
Woodhead - Molex- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 4POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 0878330433 Datasheet
-
ECAD Model
- Share
In Stock: 179
Can ship immediately
Pricing:
- 1$0.70952
Quote It
Technical Details
- Series:Milli-Grid 87833
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:4
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.141" (3.60mm)
- Contact Length - Post:0.085" (2.16mm)
- Overall Contact Length:-
- Insulation Height:0.248" (6.30mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:15.0µin (0.38µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Polyamide (PA46), Nylon 4/6, Glass Filled
- Features:-
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
Related Products

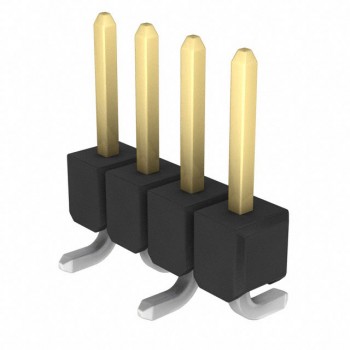

MGRID SHRD HDR SMT /OPEG&CAP GFL
