In Stock: 125

Can ship immediately

Pricing:
  • 1$0.7797
  • 1,200$0.7797

Quote It

Technical Details

  • Series:BERGSTIK® II
  • Package:Bag
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:24
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.150" (3.81mm)
  • Overall Contact Length:0.480" (12.19mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold or Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:-
  • Contact Material:Phosphor Bronze
  • Insulation Material:-
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


350-80-105-01-899191

CONN HEADER SMD 5POS 2.54MM

  • 1: $0.77994
  • 650: $0.71811

DF1BZ-15P-2.5DS

CONN HEADER R/A 15POS 2.5MM

DF1BZ-15P-2.5DS Datasheet
  • 1: $0.78000
  • 10: $0.68952
  • 100: $0.59488

DF13-9P-1.25H(20)

CONN HEADER SMD R/A 9POS 1.25MM

DF13-9P-1.25H(20) Datasheet
  • 1: $0.78000
  • 30: $0.64800

A2-3PA-2.54DS(71)

CONN HEADER R/A 3POS 2.54MM

A2-3PA-2.54DS(71) Datasheet
  • 1: $0.78000
  • 10: $0.68170
  • 25: $0.64110

MDF7B-3P-2.54DSA(55)

CONN HEADER VERT 3POS 2.54MM

MDF7B-3P-2.54DSA(55) Datasheet
  • 1: $0.78000
  • 10: $0.68900
  • 25: $0.64800

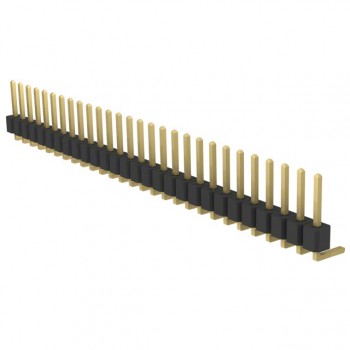

PRPC028SBAN-M71RC

CONN HEADER R/A 28POS 2.54MM

PRPC028SBAN-M71RC Datasheet
  • 1: $0.78000
  • 10: $0.69000
  • 25: $0.64920

0026481072

CONN HEADER R/A 7POS 3.96MM

0026481072 Datasheet
  • 1: $0.78000
  • 10: $0.73400
  • 25: $0.66040

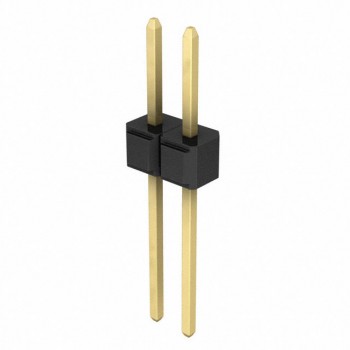

929647-03-02-I

CONN HEADER VERT 2POS 2.54MM

929647-03-02-I Datasheet
  • 1: $0.78000
  • 10: $0.73400
  • 25: $0.66080

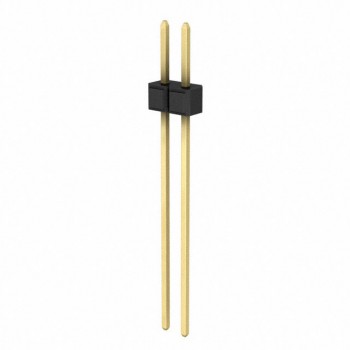

929647-07-02-I

CONN HEADER VERT 2POS 2.54MM

929647-07-02-I Datasheet
  • 1: $0.78000
  • 10: $0.73400
  • 25: $0.66080

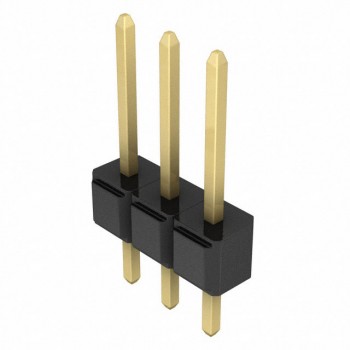

929450-01-03-I
