929700-06-07

3M
In Stock: 166

Can ship immediately

Pricing:
  • 1$0.78
  • 10$0.69
  • 25$0.6496
  • 50$0.6226
  • 100$0.5955
  • 250$0.54136
  • 500$0.4872

Quote It

Technical Details

  • Series:929
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:7
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.710" (18.03mm)
  • Overall Contact Length:1.128" (28.65mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin-Lead
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:-
  • Contact Material:Copper Alloy
  • Insulation Material:Polybutylene Terephthalate (PBT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.5A
  • Voltage Rating:-

Related Products


929700-11-07

CONN HEADER VERT 7POS 2.54MM

929700-11-07 Datasheet
  • 1: $0.78000
  • 10: $0.69000
  • 25: $0.64960

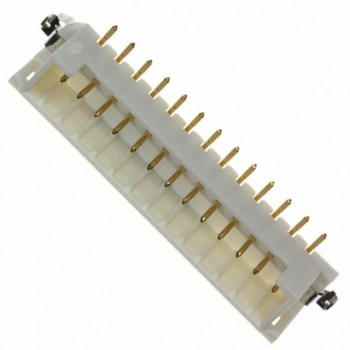

DF3EA-13P-2V(51)

CONN HEADER SMD 13POS 2MM

DF3EA-13P-2V(51) Datasheet
  • 1: $0.78000
  • 1000: $0.75000

0022284192

CONN HEADER VERT 19POS 2.54MM

0022284192 Datasheet
  • 1: $0.78000
  • 10: $0.68724
  • 25: $0.64635

M30-6000246R

CONN HEADER SMD 2POS 1.25MM

M30-6000246R Datasheet
  • 1: $0.78000
  • 1000: $0.76800

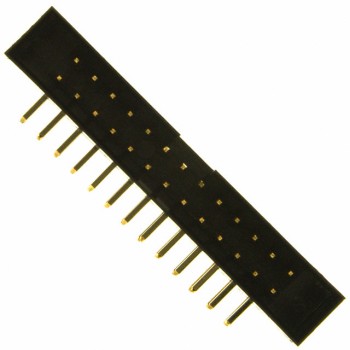

SBH21-NBPN-D13-RA-BK

CONN HEADER R/A 26POS 2MM

SBH21-NBPN-D13-RA-BK Datasheet
  • 1: $0.78030
  • 1000: $0.78030

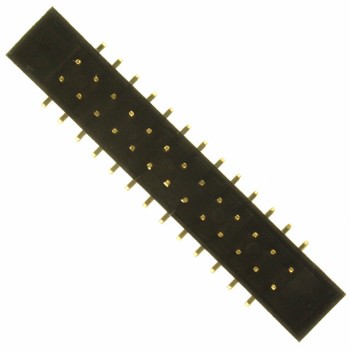

SBH21-NBPN-D13-SM-BK
