In Stock: 140

Can ship immediately

Pricing:
  • 1$0.784
  • 38$0.66979
  • 114$0.61153
  • 532$0.5096
  • 1,026$0.4368
  • 5,016$0.3873
  • 10,032$0.37856

Quote It

Technical Details

  • Series:AMPMODU System 50
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:6
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 2 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.125" (3.18mm)



  • Contact Length - Post:0.100" (2.54mm)
  • Overall Contact Length:-
  • Insulation Height:0.390" (9.91mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin-Lead
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:30VAC

Related Products


DF14A-8P-1.25H(26)

CONN HEADER SMD R/A 8POS 1.25MM

DF14A-8P-1.25H(26) Datasheet
  • 1: $1.42000
  • 1000: $0.85070

DF50-20DP-1V(52)

CONN HEADER SMD 20POS 1MM

  • 1: $0.78400
  • 1000: $0.75200

DF14-8P-1.25H(26)

CONN HEADER SMD R/A 8POS 1.25MM

DF14-8P-1.25H(26) Datasheet
  • 1: $0.78400
  • 1000: $0.78400

DF13C-6P-1.25V(77)

CONN HDR 6POS 1.25MM SMD STR

  • 1: $0.78400
  • 1000: $0.75200

0026503150

CONN HEADER VERT 15POS 3.96MM

0026503150 Datasheet
  • 1: $0.78401
  • 1600: $0.78401

852-80-010-30-001101

CONN HEADER SMD 10POS 1.27MM

852-80-010-30-001101 Datasheet
  • 1: $0.78405
  • 410: $0.78405

890-70-017-20-002101

CONN HEADER R/A 17POS 2.54MM

890-70-017-20-002101 Datasheet
  • 1: $0.78408
  • 640: $0.71084

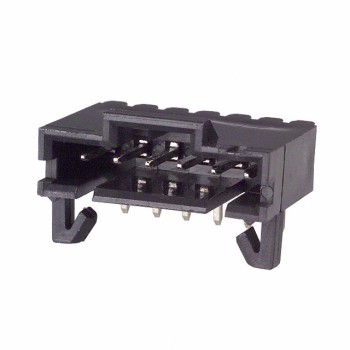

2-103672-9
