0022282160

Woodhead - Molex
In Stock: 126

Can ship immediately

Pricing:
  • 1$0.79475
  • 2,000$0.79475

Quote It

Technical Details

  • Series:KK254, 42226
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:16
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.295" (7.49mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:-
  • Insulation Height:0.284" (7.21mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:-
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


DF14-10P-1.25H(26)

CONN HEADER SMD R/A 10POS 1.25MM

DF14-10P-1.25H(26) Datasheet
  • 1: $0.79500
  • 1000: $0.79500

DF13A-10P-1.25H(93)

CONN HDR 10POS 1.25MM SMD R/A

  • 1: $0.79500
  • 1000: $0.78000

10127820-2022GLF

CONN HEADER VERT 20POS 4.2MM

  • 1: $0.79501
  • 405: $0.79501

0022289202

CONN HEADER R/A 20POS 2.54MM

0022289202 Datasheet
  • 1: $0.79506
  • 3000: $0.79506

0022289203

CONN HEADER R/A 20POS 2.54MM

0022289203 Datasheet
  • 1: $0.79506
  • 3000: $0.79506

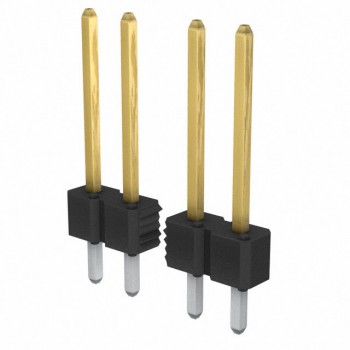

75160-132-09LF

CONN HEADER VERT 9POS 2.54MM

75160-132-09LF Datasheet
  • 1: $0.79524
  • 500: $0.73530

0015915149

CONN HEADER SMD 14POS 2.54MM

0015915149 Datasheet
  • 1: $0.79534
  • 3240: $0.79534

644742-1

CONN HEADER VERT 3POS 3.96MM

644742-1 Datasheet
  • 1: $0.79547
  • 2000: $0.79547

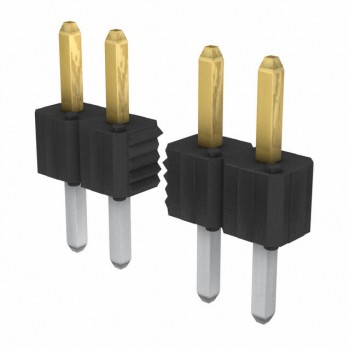

94063-120HLF
