0878311035
Woodhead - Molex- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 10POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 0878311035 Datasheet
-
ECAD Model
- Share
In Stock: 161
Can ship immediately
Pricing:
- 1$0.8239
- 3,360$0.8239
Quote It
Technical Details
- Series:Milli-Grid 87831
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:10
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.141" (3.60mm)
- Contact Length - Post:0.138" (3.50mm)
- Overall Contact Length:-
- Insulation Height:0.252" (6.40mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Polyamide (PA), Nylon, Glass Filled
- Features:Board Guide, Keying Slot
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):2A
- Voltage Rating:125V
Related Products
MINITEK PWR3.0 VT HEADER
- 1: $0.82400

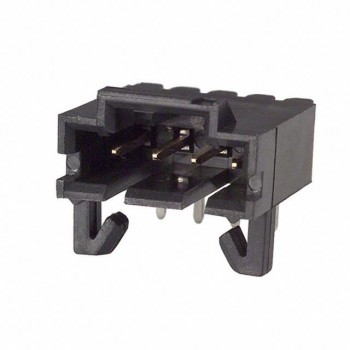

CONN HEADER SMD R/A 9POS 1.27MM
