In Stock: 142

Can ship immediately

Pricing:
  • 1$0.91935
  • 200$0.85835

Quote It

Technical Details

  • Series:AMPMODU Mod II
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:8
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.090" (2.29mm)
  • Overall Contact Length:0.410" (10.41mm)
  • Insulation Height:0.090" (2.29mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin-Lead
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin-Lead
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:-
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


1718564005

CONN HEADER VERT 5POS 2.54MM

1718564005 Datasheet
  • 1: $0.91935
  • 1050: $0.91935

98401-102-18LF

CONN HEADER SMD 18POS 2.54MM

98401-102-18LF Datasheet
  • 1: $0.91953
  • 800: $0.85018

10132449-2411GLF

CONN HEADER R/A 24POS 3MM

10132449-2411GLF Datasheet
  • 1: $0.91965
  • 1428: $0.91965

0905670014

CONN HEADER R/A 14POS 1.27MM

0905670014 Datasheet
  • 1: $0.91975
  • 8064: $0.91975

644751-8

CONN HEADER R/A 8POS 3.96MM

644751-8 Datasheet
  • 1: $0.92000
  • 10: $0.80500

0022284270

CONN HEADER VERT 27POS 2.54MM

0022284270 Datasheet
  • 1: $0.92000
  • 10: $0.81100
  • 25: $0.76320

929500-01-10

CONN HEADER R/A 10POS 2.54MM

929500-01-10 Datasheet
  • 1: $0.92000
  • 10: $0.80900
  • 25: $0.76160

4-103777-0-08

CONN HEADER VERT 16POS 2.54MM

4-103777-0-08 Datasheet
  • 1: $0.92000
  • 10: $0.81285
  • 25: $0.76544

PBC09SABN

CONN HEADER VERT 9POS 2.54MM

PBC09SABN Datasheet
  • 1: $0.92000
  • 10: $0.81100
  • 25: $0.76320

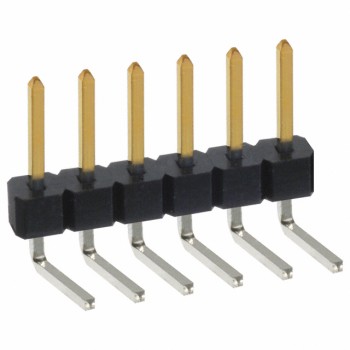

PBC06SBCN
