5054332671
Woodhead - Molex- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD 26POS 1.25MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 5054332671 Datasheet
-
ECAD Model
- Share
In Stock: 121
Can ship immediately
Pricing:
- 1$0.96715
- 1,500$0.96715
Quote It
Technical Details
- Series:Micro-Lock PLUS 505433
- Package:Tape & Reel (TR)
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.049" (1.25mm)
- Number of Positions:26
- Number of Rows:2
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Latch Holder
- Contact Length - Mating:-
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.285" (7.25mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:39.4µin (1.00µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polyamide (PA), Nylon
- Features:Solder Retention
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):Varies by Wire Gauge
- Voltage Rating:50VAC/DC
Related Products

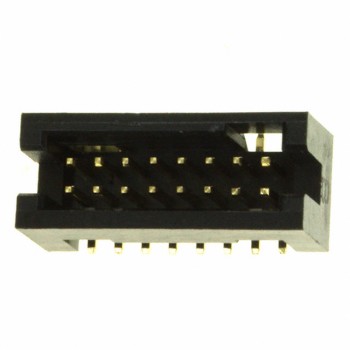

MTK HEADER ASSY DR BMI-8POS 0.76
