0022284221
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 22POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 0022284221 Datasheet
-
ECAD Model
- Share
In Stock: 183
Can ship immediately
Pricing:
- 1$0.99
- 10$0.873
- 25$0.8212
- 50$0.787
- 100$0.7528
- 250$0.68436
- 500$0.6159
Quote It
Technical Details
- Series:KK254, 42375
- Package:Bulk
- Part Status:Active
- Connector Type:Header, Breakaway
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:22
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.320" (8.13mm)
- Contact Length - Post:0.120" (3.05mm)
- Overall Contact Length:0.530" (13.46mm)
- Insulation Height:0.090" (2.29mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:100.0µin (2.54µm)
- Contact Finish - Post:Tin
- Contact Material:-
- Insulation Material:Polyamide (PA), Nylon, Glass Filled
- Features:-
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
Related Products

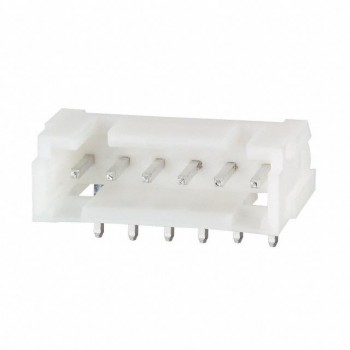

CONN HEADER R/A 6POS 2.5MM
