929665-01-03-EU

3M
In Stock: 154

Can ship immediately

Pricing:
  • 1$1.16
  • 10$1.022
  • 25$0.962
  • 50$0.9218
  • 100$0.8818
  • 250$0.8016
  • 500$0.72144

Quote It

Technical Details

  • Series:929
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:6
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.235" (5.97mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:0.445" (11.30mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Copper Alloy
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.5A
  • Voltage Rating:-

Related Products


0022284340

CONN HEADER VERT 34POS 2.54MM

0022284340 Datasheet
  • 1: $1.16000
  • 10: $1.02100
  • 25: $0.96120

0022288162

CONN HEADER R/A 16POS 2.54MM

0022288162 Datasheet
  • 1: $1.16000
  • 10: $1.01600
  • 25: $0.95600

929400-01-12

CONN HEADER VERT 12POS 2.54MM

929400-01-12 Datasheet
  • 1: $1.16000
  • 10: $1.02000
  • 25: $0.96000

4-103321-0-14

CONN HEADER VERT 14POS 2.54MM

4-103321-0-14 Datasheet
  • 1: $1.16000
  • 10: $1.01607
  • 25: $0.95636

NRPN271PAEN-RC

CONN HEADER VERT 27POS 2MM

NRPN271PAEN-RC Datasheet
  • 1: $1.16000
  • 10: $1.02000
  • 25: $0.96040

PBC07SAHN

CONN HEADER VERT 7POS 2.54MM

PBC07SAHN Datasheet
  • 1: $1.16000
  • 10: $1.01700
  • 25: $0.95760

PBC13SBAN

CONN HEADER R/A 13POS 2.54MM

PBC13SBAN Datasheet
  • 1: $1.16000
  • 10: $1.01700
  • 25: $0.95680

929835-01-17-RK

CONN HEADER R/A 17POS 2.54MM

929835-01-17-RK Datasheet
  • 1: $1.16000
  • 10: $1.01700
  • 25: $0.95760

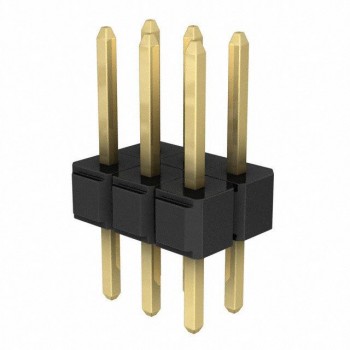

929665-09-03-EU

CONN HEADER VERT 6POS 2.54MM

929665-09-03-EU Datasheet
  • 1: $1.16000
  • 10: $1.02200
  • 25: $0.96200

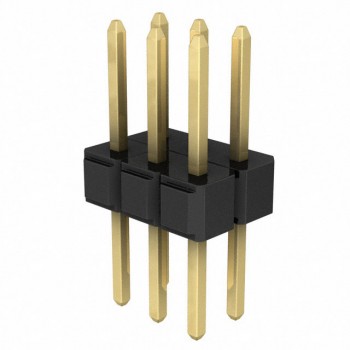

929665-02-03-EU
