0022283174

Woodhead - Molex
In Stock: 146

Can ship immediately

Pricing:
  • 1$1.16144
  • 2,500$1.16144

Quote It

Technical Details

  • Series:KK254, 42225
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:17
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.295" (7.49mm)



  • Contact Length - Post:0.135" (3.43mm)
  • Overall Contact Length:0.555" (14.10mm)
  • Insulation Height:0.337" (8.56mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:-
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


G823J201240BHR

BOX HEADER FOR USB 3.0,2.0MM PIT

  • 1: $1.16145

20021221-10214C8LF

CONN HEADER SMD 14POS 1.27MM

20021221-10214C8LF Datasheet
  • 1: $1.16160
  • 1000: $1.16160

2-1586768-0

CONN HEADER VERT 20POS 4.2MM

2-1586768-0 Datasheet
  • 1: $1.16169
  • 1350: $1.16169

2-2029134-4

CONN HEADER VERT 24POS 4.2MM

  • 1: $1.16169
  • 1050: $1.08909

2-2029142-4

CONN HEADER VERT 24POS 4.2MM

  • 1: $1.16169
  • 1050: $1.08909

2-2029138-4

CONN HEADER VERT 24POS 4.2MM

  • 1: $1.16169
  • 1050: $1.08909

68016-236H

CONN HEADER R/A 36POS 2.54MM

68016-236H Datasheet
  • 1: $1.16178
  • 800: $1.16178

0022057138

CONN HEADER R/A 13POS 2.54MM

0022057138 Datasheet
  • 1: $1.16186
  • 2000: $1.16186

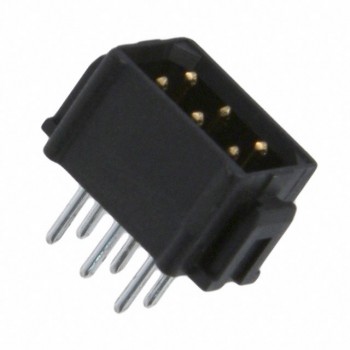

M80-8690622
