In Stock: 142

Can ship immediately

Pricing:
  • 1$1.17291
  • 1,000$1.08453

Quote It

Technical Details

  • Series:AMPMODU Mod II
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:14
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.125" (3.18mm)
  • Overall Contact Length:0.533" (13.55mm)
  • Insulation Height:0.090" (2.29mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


10127819-04411PLF

MINITEK PWR4.2 RA HEADER

  • 1: $1.17306

800-80-010-66-001101

CONN HEADER VERT 10POS 2.54MM

800-80-010-66-001101 Datasheet
  • 1: $1.17320
  • 700: $1.08047

880-70-023-20-001101

CONN HEADER R/A 23POS 2MM

880-70-023-20-001101 Datasheet
  • 1: $1.17326
  • 460: $1.06370

890-70-031-10-003101

CONN HEADER VERT 31POS 2.54MM

890-70-031-10-003101 Datasheet
  • 1: $1.17326
  • 460: $1.06370

350-10-113-01-609101

CONN HEADER VERT 7POS 5.08MM

350-10-113-01-609101 Datasheet
  • 1: $1.17345
  • 470: $1.02494

0713088024

CONN HEADER SMD 24POS 2.54MM

0713088024 Datasheet
  • 1: $1.17348
  • 3672: $1.17348

71979-216LF

CONN HEADER R/A 16POS 2.54MM

  • 1: $1.17354
  • 570: $1.08535

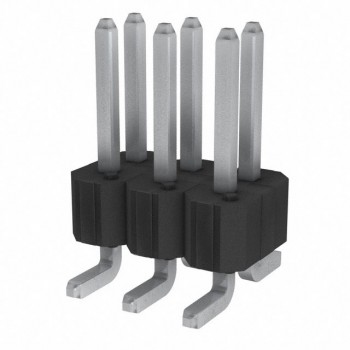

54202-T0803ALF

CONN HEADER SMD 6POS 2.54MM

54202-T0803ALF Datasheet
  • 1: $1.17355
  • 740: $1.17355

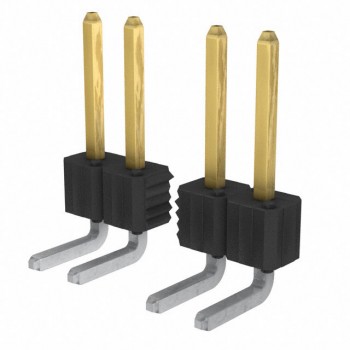

10082201-104-20LF
