2-644750-1
TE Connectivity AMP Connectors- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 21POS 3.96MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 2-644750-1 Datasheet
-
ECAD Model
- Share
In Stock: 179
Can ship immediately
Pricing:
- 1$1.20246
- 500$1.1452
Quote It
Technical Details
- Series:MTA-156
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.156" (3.96mm)
- Number of Positions:21
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:-
- Contact Length - Mating:0.400" (10.16mm)
- Contact Length - Post:0.175" (4.45mm)
- Overall Contact Length:0.700" (17.78mm)
- Insulation Height:0.125" (3.18mm)
- Contact Shape:Circular
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Thermoplastic, Glass Filled
- Features:-
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Natural
- Current Rating (Amps):Varies by Wire Gauge
- Voltage Rating:600VAC
Related Products

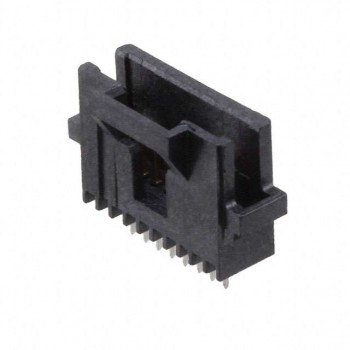

1MM RIGHT ANGLE HEADER WITH LATC
