86130642324345E1LF
Storage & Server IO (Amphenol ICC)- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 64POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 86130642324345E1LF Datasheet
-
ECAD Model
- Share
In Stock: 138
Can ship immediately
Pricing:
- 1$1.21567
- 210$1.12414
Quote It
Technical Details
- Series:Quickie™
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:64
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Latch Lock/Eject Hooks, Long
- Contact Length - Mating:0.240" (6.10mm)
- Contact Length - Post:0.114" (2.90mm)
- Overall Contact Length:0.656" (16.65mm)
- Insulation Height:0.366" (9.30mm)
- Contact Shape:Circular
- Contact Finish - Mating:Gold or Gold-Palladium
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Polybutylene Terephthalate (PBT)
- Features:Keying Slot
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Gray
- Current Rating (Amps):-
- Voltage Rating:250V
Related Products

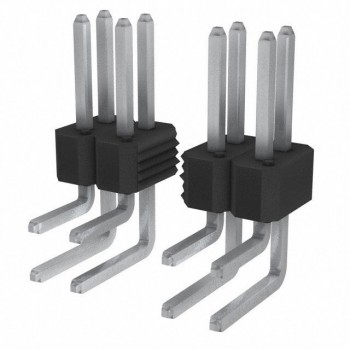

11 MODII HDR SRST B/A .100CL
