73398-107ALF
Storage & Server IO (Amphenol ICC)- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD 16POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 73398-107ALF Datasheet
-
ECAD Model
- Share
In Stock: 100
Can ship immediately
Pricing:
- 1$1.2474
- 600$1.1536
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:16
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:15
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.230" (5.84mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.100" (2.54mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold, GXT™
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Thermoplastic
- Features:Pick and Place
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
Related Products
CONN HEADER VERT 38POS 2MM
- 1: $1.24874
- 2000: $1.24874

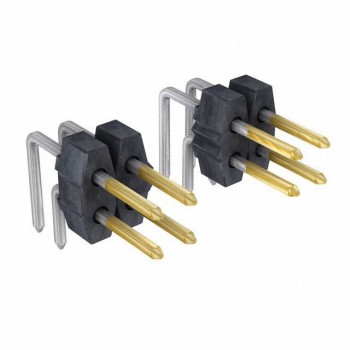

CONN HEADER R/A 8POS 2.54MM
