890-80-025-10-004101

Preci-Dip
In Stock: 133

Can ship immediately

Pricing:
  • 1$1.25133
  • 420$1.15236

Quote It

Technical Details

  • Series:890
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:25
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.587" (14.91mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:0.805" (20.44mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:150VDC

Related Products


0026485064

CONN HEADER VERT 6POS 3.96MM

0026485064 Datasheet
  • 1: $1.25146
  • 3200: $1.25146

87221-6

CONN HEADER VERT 7POS 3.81MM

87221-6 Datasheet
  • 1: $1.25202
  • 2000: $1.16099

77315-818-21LF

CONN HEADER R/A 21POS 2.54MM

77315-818-21LF Datasheet
  • 1: $1.25212
  • 500: $1.15780

77315-101-21LF

CONN HEADER R/A 21POS 2.54MM

77315-101-21LF Datasheet
  • 1: $1.25212
  • 500: $1.15780

77315-118-21LF

CONN HEADER R/A 21POS 2.54MM

77315-118-21LF Datasheet
  • 1: $1.25212
  • 500: $1.15780

77315-801-21LF

CONN HEADER R/A 21POS 2.54MM

77315-801-21LF Datasheet
  • 1: $1.25212
  • 500: $1.15780

77311-404-24LF

CONN HEADER VERT 24POS 2.54MM

77311-404-24LF Datasheet
  • 1: $1.25212
  • 500: $1.15780

69133-124HLF

CONN HEADER VERT 24POS 2.54MM

69133-124HLF Datasheet
  • 1: $1.25213
  • 600: $1.25213

77313-115-24LF

CONN HEADER VERT 24POS 2.54MM

77313-115-24LF Datasheet
  • 1: $1.25213
  • 600: $1.15780

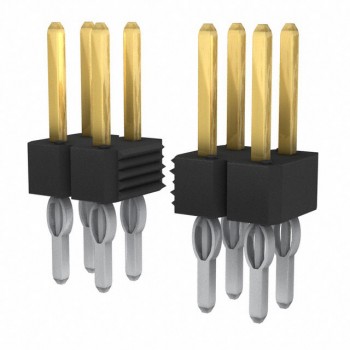

93690-103-24LF
