0417925532

Woodhead - Molex
In Stock: 125

Can ship immediately

Pricing:
  • 1$1.2789
  • 2,000$1.2789

Quote It

Technical Details

  • Series:KK396, 41792
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.156" (3.96mm)
  • Number of Positions:6
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.450" (11.43mm)



  • Contact Length - Post:0.156" (3.96mm)
  • Overall Contact Length:-
  • Insulation Height:0.394" (10.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:-
  • Insulation Material:Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


450-10-210-00-106191

CONN HEADER SMD 10POS 2.54MM

  • 1: $1.27890
  • 600: $1.27890

64901021022

CONN HEADER R/A 10POS 4.2MM

  • 1: $1.27900
  • 10: $1.25723
  • 50: $1.16017

880-70-038-10-001101

CONN HEADER VERT 38POS 2MM

880-70-038-10-001101 Datasheet
  • 1: $1.27907
  • 420: $1.15945

2-640455-4

CONN HEADER R/A 24POS 2.54MM

2-640455-4 Datasheet
  • 1: $1.27918
  • 500: $1.27918

957216-6002-AR

CONN HEADER VERT 16POS 2MM

957216-6002-AR Datasheet
  • 1: $1.27920
  • 8000: $1.27920

957210-5002-AR

CONN HEADER R/A 10POS 2MM

957210-5002-AR Datasheet
  • 1: $1.27920
  • 8000: $1.27920

65863-410LF

CONN HEADER VERT 14POS 2.54MM

65863-410LF Datasheet
  • 1: $1.27920
  • 1200: $1.27920

57202-S52-04LF

CONN HEADER SMD 8POS 2MM

57202-S52-04LF Datasheet
  • 1: $1.27935
  • 1000: $1.18290

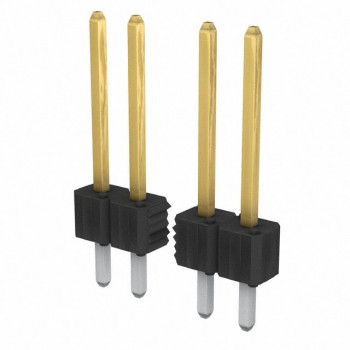

68604-236
