In Stock: 114

Can ship immediately

Pricing:
  • 1$1.28
  • 10$1.124
  • 25$1.0576
  • 50$1.0136
  • 100$0.9695
  • 250$0.88136
  • 500$0.7932

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:74
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:0.448" (11.39mm)
  • Insulation Height:0.098" (2.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A per Contact
  • Voltage Rating:-

Related Products


PRPC025DFAN-RC

CONN HEADER VERT 50POS 2.54MM

PRPC025DFAN-RC Datasheet
  • 1: $1.28000
  • 10: $1.12300
  • 25: $1.05680

PRPC039SGAN-M71RC

CONN HEADER R/A 39POS 2.54MM

PRPC039SGAN-M71RC Datasheet
  • 1: $1.28000
  • 10: $1.12500
  • 25: $1.05880

PRPC021DFBN-RC

CONN HEADER VERT 42POS 2.54MM

PRPC021DFBN-RC Datasheet
  • 1: $1.28000
  • 10: $1.12100
  • 25: $1.05520

PRPC039SBBN-M71RC

CONN HEADER R/A 39POS 2.54MM

PRPC039SBBN-M71RC Datasheet
  • 1: $1.28000
  • 10: $1.12500
  • 25: $1.05880

PRPC025DABN-RC

CONN HEADER VERT 50POS 2.54MM

PRPC025DABN-RC Datasheet
  • 1: $1.28000
  • 10: $1.12300
  • 25: $1.05680

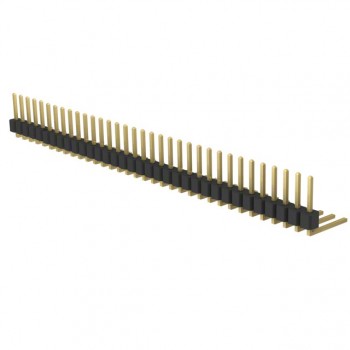

PRPC034SBCN-M71RC

CONN HEADER R/A 34POS 2.54MM

PRPC034SBCN-M71RC Datasheet
  • 1: $1.28000
  • 10: $1.12600
  • 25: $1.06000

929648-04-06-EU

CONN HEADER R/A 6POS 2.54MM

929648-04-06-EU Datasheet
  • 1: $1.28000
  • 10: $1.12600
  • 25: $1.06000

71922-218LF

CONN HEADER R/A 18POS 2.54MM

71922-218LF Datasheet
  • 1: $1.28012
  • 660: $1.18370

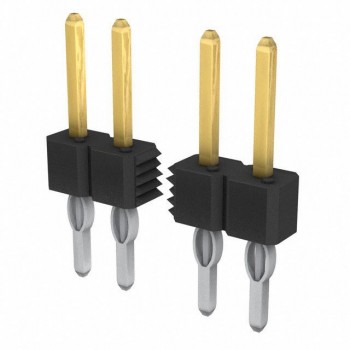

93689-103-06LF

CONN HEADER VERT 6POS 2.54MM

93689-103-06LF Datasheet
  • 1: $1.28012
  • 500: $1.18370

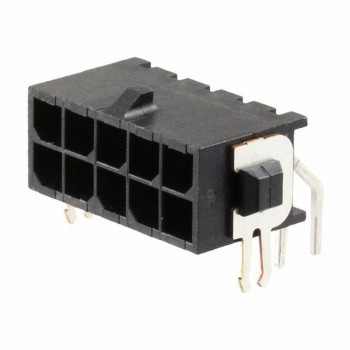

4-794678-0
