0757575331
Woodhead - Molex- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 6POS 3.5MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 0757575331 Datasheet
-
ECAD Model
- Share
In Stock: 145
Can ship immediately
Pricing:
- 1$1.30088
- 2,800$1.30088
Quote It
Technical Details
- Series:MX150 75757
- Package:Tube
- Part Status:Active
- Connector Type:Header, Breakaway
- Contact Type:Male Blade
- Pitch - Mating:0.138" (3.50mm)
- Number of Positions:6
- Number of Rows:2
- Row Spacing - Mating:0.236" (6.00mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.633" (16.09mm)
- Contact Length - Post:0.120" (3.05mm)
- Overall Contact Length:0.931" (23.64mm)
- Insulation Height:0.177" (4.50mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin
- Contact Material:Cartridge Brass
- Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
- Features:-
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
Related Products

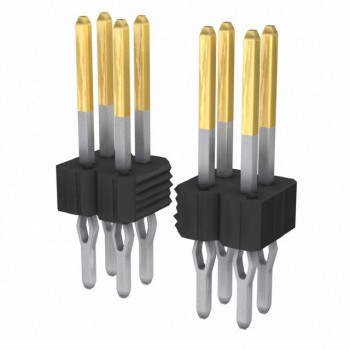

CONN HEADER SMD 8POS 2.54MM
