3-647047-5
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 5POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 3-647047-5 Datasheet
-
ECAD Model
- Share
In Stock: 150
Can ship immediately
Pricing:
- 1$1.34759
- 2,000$1.34759
Quote It
Technical Details
- Series:MTA-100
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:5
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 1 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:-
- Contact Length - Mating:0.290" (7.37mm)
- Contact Length - Post:0.135" (3.43mm)
- Overall Contact Length:0.550" (13.97mm)
- Insulation Height:0.347" (8.81mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Polyamide (PA46), Nylon 4/6
- Features:-
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):Varies by Wire Gauge
- Voltage Rating:250VAC
Related Products

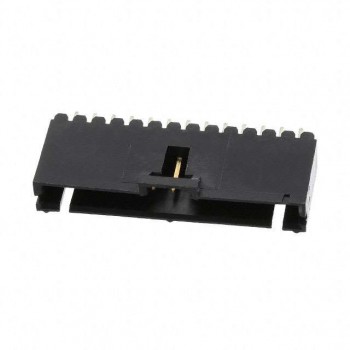

24P,2MM,SHRD HDR,DRVT,0.1AU,TR W
