In Stock: 160

Can ship immediately

Pricing:
  • 1$1.38486

Quote It

Technical Details

  • Series:AMPMODU
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:20
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.157" (4.00mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:-
  • Insulation Height:0.059" (1.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-40°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2A
  • Voltage Rating:125VAC/DC

Related Products


52601-S20-6

CONN HEADER VERT 20POS 2.54MM

52601-S20-6 Datasheet
  • 1: $1.38490
  • 400: $1.38490

77317-112-28LF

CONN HEADER R/A 28POS 2.54MM

77317-112-28LF Datasheet
  • 1: $1.38490
  • 400: $1.28060

77315-118-22LF

CONN HEADER R/A 22POS 2.54MM

77315-118-22LF Datasheet
  • 1: $1.38490
  • 300: $1.28060

77315-818-22LF

CONN HEADER R/A 22POS 2.54MM

77315-818-22LF Datasheet
  • 1: $1.38490
  • 400: $1.28060

3-178139-5

CONN HEADER R/A 6POS 5.08MM

3-178139-5 Datasheet
  • 1: $1.38538
  • 3000: $1.11329

2-644752-1

CONN HEADER VERT 21POS 3.96MM

2-644752-1 Datasheet
  • 1: $1.38566
  • 500: $1.31968

DF1B-16P-2.5DS(01)

CONN HEADER R/A 16POS 2.5MM

  • 1: $1.38600
  • 100: $1.30200

DF1BZ-40DP-2.5DS

CONN HEADER R/A 40POS 2.5MM

DF1BZ-40DP-2.5DS Datasheet
  • 1: $1.38600
  • 100: $1.34400

HNC2-2.5P-10DSL(02)

CONN HEADER R/A 10POS 2.5MM

HNC2-2.5P-10DSL(02) Datasheet
  • 1: $1.38600

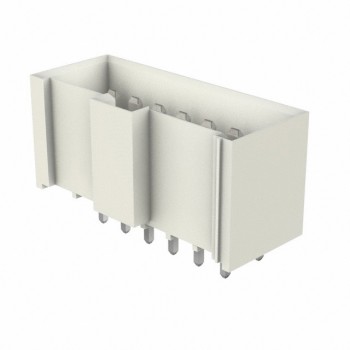

MDF6-14DP-3.5DSA(05)
