In Stock: 179

Can ship immediately

Pricing:
  • 1$1.39213
  • 400$1.28725

Quote It

Technical Details

  • Series:BERGSTIK®
  • Package:Bag
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:34
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.135" (3.43mm)
  • Overall Contact Length:0.465" (11.81mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold or Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


4-641212-1

CONN HEADER R/A 11POS 2.54MM

4-641212-1 Datasheet
  • 1: $1.39215
  • 1000: $1.39215

0307004147

CONN HEADER VERT 14POS 2.54MM

  • 1: $1.39215
  • 594: $1.39215

0022102132

CONN HEADER VERT 13POS 2.54MM

0022102132 Datasheet
  • 1: $1.39216
  • 4000: $1.39216

87465-5

CONN HEADER VERT 3POS 2.54MM

87465-5 Datasheet
  • 1: $1.39218
  • 2500: $1.29094

802-80-018-20-001101

CONN HEADER R/A 18POS 2.54MM

802-80-018-20-001101 Datasheet
  • 1: $1.39232
  • 384: $1.28227

1-640384-9

CONN HEADER VERT 19POS 3.96MM

1-640384-9 Datasheet
  • 1: $1.39234
  • 500: $1.32602

57202-G51-10ALF

CONN HEADER SMD 20POS 2MM

57202-G51-10ALF Datasheet
  • 1: $1.39299
  • 750: $1.28809

5176837-7

CONN HEADER R/A 16POS 2MM

5176837-7 Datasheet
  • 1: $1.39311
  • 3800: $1.39311

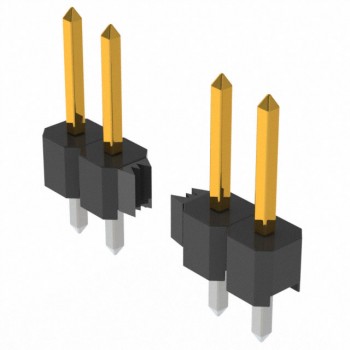

2328-6111-TB
