In Stock: 170

Can ship immediately

Pricing:
  • 1$1.3948
  • 400$1.28953

Quote It

Technical Details

  • Series:BERGSTIK®
  • Package:Bag
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:27
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.266" (6.75mm)



  • Contact Length - Post:0.112" (2.84mm)
  • Overall Contact Length:-
  • Insulation Height:0.094" (2.40mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold or Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


77315-824-27LF

CONN HEADER R/A 27POS 2.54MM

77315-824-27LF Datasheet
  • 1: $1.39480
  • 400: $1.28953

0901220925

CONN HEADER R/A 10POS 2.54MM

0901220925 Datasheet
  • 1: $1.39482
  • 2700: $1.39482

3-647106-8

CONN HEADER SMD 8POS 2.54MM

3-647106-8 Datasheet
  • 1: $1.39498
  • 2000: $1.26816

DF20F-40DP-1V(90)

CONN HEADER 40POS DUAL SMD

  • 1: $1.39500
  • 1000: $1.35000

0460151607

CONN HEADER VERT 16POS 4.2MM

0460151607 Datasheet
  • 1: $1.39505
  • 1920: $1.39505

SBH31-NBPB-D16-ST-BK

CONN HEADER VERT 32POS 1.27MM

SBH31-NBPB-D16-ST-BK Datasheet
  • 1: $1.39505
  • 1000: $1.39505

10131319-18121G0LF

CONN HEADER VERT 18POS 4.2MM

  • 1: $1.39536
  • 450: $1.39536

0878320811

CONN HEADER SMD 8POS 2MM

0878320811 Datasheet
  • 1: $1.39566
  • 4000: $1.39566

800-80-020-10-001101

CONN HEADER VERT 20POS 2.54MM

800-80-020-10-001101 Datasheet
  • 1: $1.39575
  • 400: $1.28535

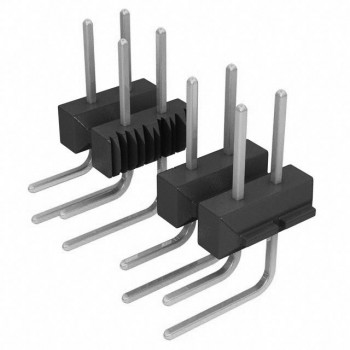

0010883141
